Name: Flat Wire Vertical Winding Toroidal Ferrite Core Differential Mode Choke Coils
Brand: IKP Electronics Co., Ltd.
SKU: IKP-LF-DMC Series
Price: 3.25 USD
Availability: InStock

Inicio Productos Bobinas de obstrucción diferenciadas del modo

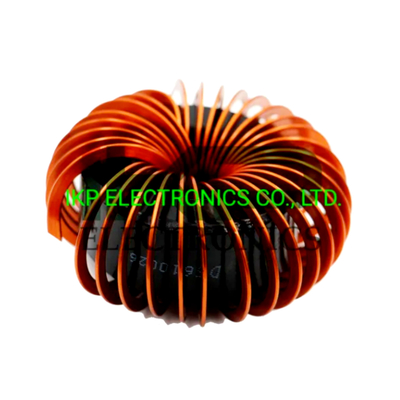

Flat Wire Vertical Winding Toroidal Ferrite Core Differential Mode Choke Coils

Datos del producto:

Place of Origin:	CHINA
Nombre de la marca:	IKP
Certificación:	CE/UL/REACH/ROHS
Model Number:	IKP-LF-DMC Series

Pago y Envío Términos:

Minimum Order Quantity:	1000
Precio:	3.25-3.33
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contactar ahora

Descripción detallada del producto

Basic Info.

Model NO.

IKP-LF-DMC Series

Working Frequency

High Frequency

Structure of Winding

Single Coil

Nature of Operation

Choke Coil

Structure of Magnetizer

Ferrite Coil

Range of Application

Smoothing

Packaging Form

Power Coils

Brand

OEM/ODM

Inductor Value

Variable Inductor

Flat Wire

Vertical Winding Technology

Application

for Active Power Factor Correction

Phase

Single/Three/Four Phase

Transport Package

Carton

Specification

Variable Specifications

Trademark

IKP-ELEC

Origin

Hefei, China

HS Code

85045000

Production Capacity

50000pieces/Week

Product Description

PFC (power factor correction) chokes are inductive components, which must have a low-capacitance arrangement. In switched-mode power supplies they work in series with the supplying mains voltage, improve the power factor of electrical devices, and fulfil the statutory requirements regarding the medium-frequency interference emissions associated with the device.

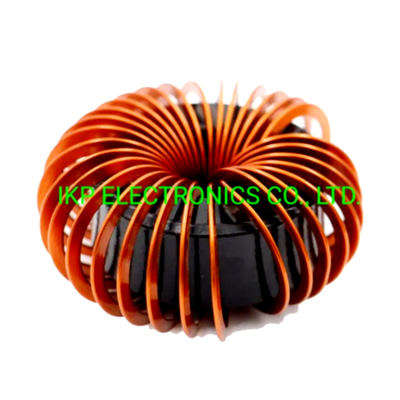

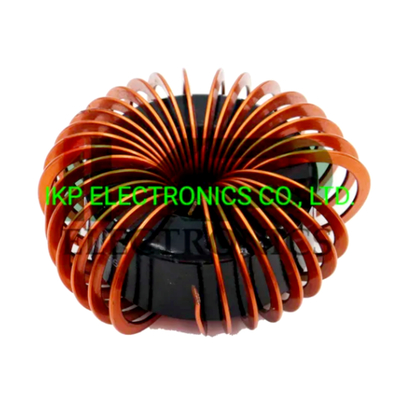

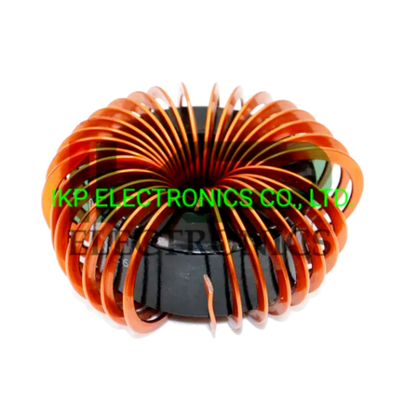

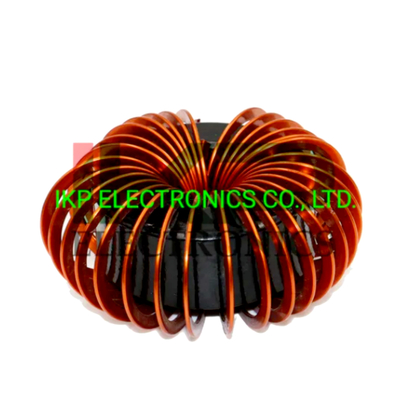

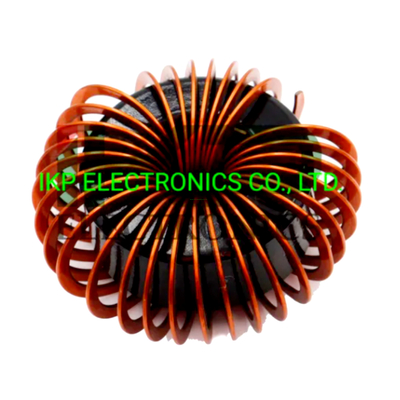

Flat Wire Vertical Winding Toroidal Ferrite Core Differential Mode Choke Coils

FEATURES:
Winding directly to the closed magnetic path core
Use the flat wire, improving the space factor
Small size, high current
Better heat dissipation
Single phase winding, thereby dramatically reduce stray capacitance
Achieve a high inductance in both common mode and normal mode
Achieve a high magnetic saturation characteristics
No layer-short, higher quality
EMI effect is excellent
Alternative products: UU10.5, UU16
Standard: CISPR22 Class B
Raw materials imported from Japan
Achieve TDK standards
Automatic machine winding, neatly arranged, high capacity
High insulation strength, improve power supply life
Preferred supplier aerospace, military, medical and electronics industries

APPLICATION:
-Personal Computer
-Switching power supply, Adapter and UPS
-Computer products
-DVD
-LED power supply
-LCD TV & Monitor Displays Power Boards
-Consumer Electric Products & Battery Charger, Printers

Note:
We can design and manufacture customized part with specific requirement

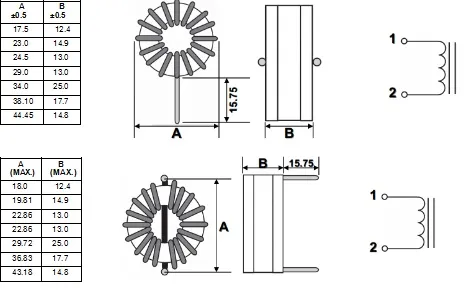

Part Number	L@0Amps D.C. (MH)±20%	MaxRDC.()	Suggested Rated Current (Amps)
IKP-ACL2929-0.2MH	0.20	.005	5.5
IKP-ACL2929-0.8MH	0.80	.006	5.5
IKP-ACL2929-1.8MH	1.80 2.45	.008	5.5
IKP-ACL2929-3.2MH	3.20	.010	5.5
IKP-ACL2929-5.0MH	5.00	.012	5.0
IKP-ACL2929-7.2MH	7.20	.014	5.0
IKP-ACL2929-9.8MH	9.80	.016	5.0
IKP-ACL2929-12.8MH	12.80	.020	5.0
IKP-ACL2929-16.2MH	16.20	.024	5.0
IKP-ACL2929-20.0MH	20.00	.028	5.0
IKP-ACL2929-24.2MH	24.20	.032	5.0
IKP-ACL2929-28.8MH	28.80	.034	5.0
IKP-ACL2929-33.8MH	33.80	.038	5.0
IKP-ACL2929-39.2MH	39.20	.046	5.0
IKP-ACL2929-45.0MH	45.00	.056	4.5
IKP-ACL2929-51.2MH	51.20	.062	4.5
IKP-ACL2929-57.8MH	57.80	.090	3.5
IKP-ACL2929-64.8MH	64.80	.100	3.5
IKP-ACL2929-57.0MH	57.00	.120	3.5
IKP-ACL2929-80.0MH	80.00	.180	2.0
